TITANTUBING - 1SNG,2SNG


Titan Tubing: We Can Take the Pressure

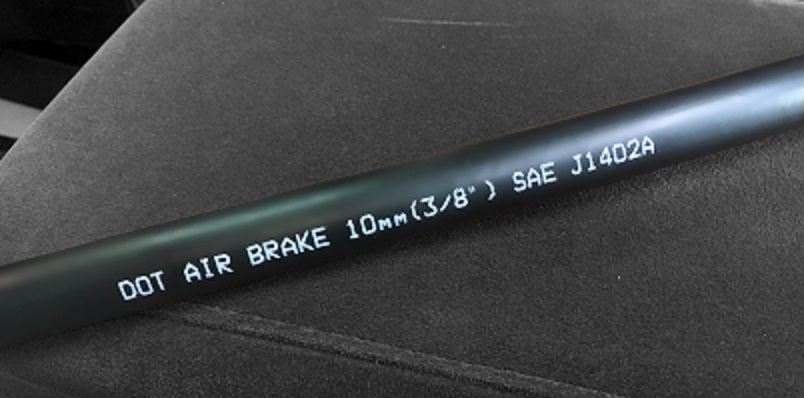

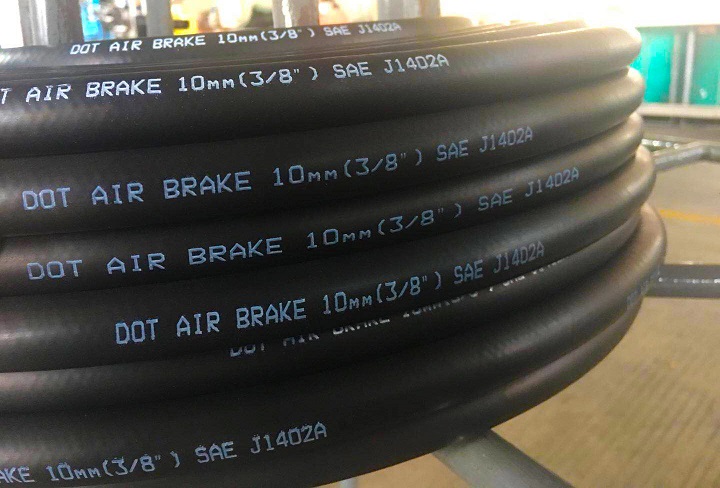

AIR BRAKE HOSE

HOSE CONSTRUCTION:
Tube: Black Versigard (EPDM)
Reinforcement: One or More Fiber Braid
Cover: Black Versigard (EPDM)
Temperature range (medium): -40°C to +93°C

Nominal ф			Inside ф		Outside ф		Working pressure		Bend radius
mm	dash	inch	Min	Max	Min	Max	bar	psi	mm
10	-6	3/8	9.3	10.1	16.3	18.2	1,6	225	45
12.5	-8	1/2	12.3	13.5	18.5	20.1	1,6	225	50
